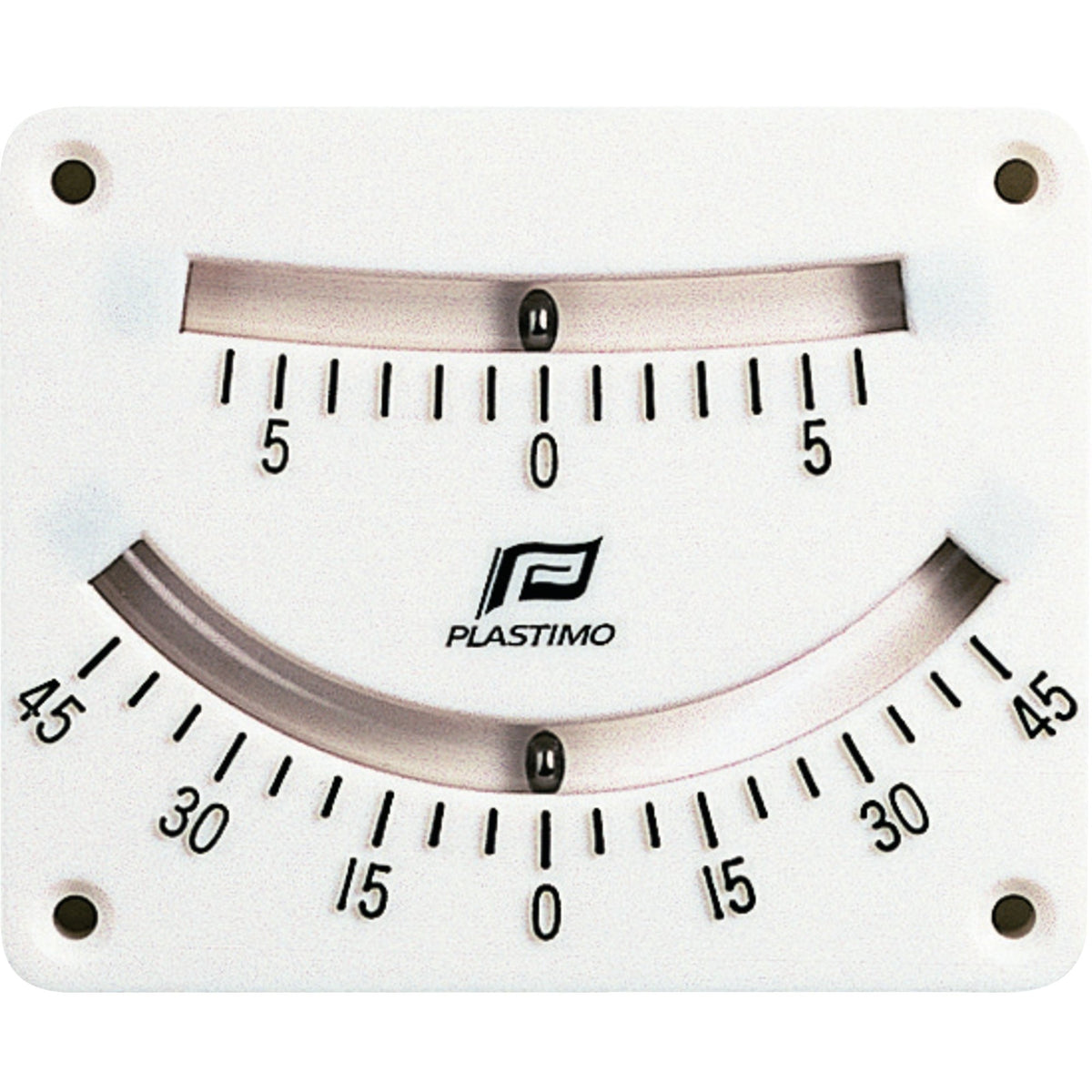

Plastimo Twin Scale Clinometer

The Plastimo Twin Scale Clinometer provides a simple, reliable way to monitor your boat's angle of heel while sailing. Featuring dual measurement scales, this marine heel angle indicator helps sailors evaluate boat trim and optimize sailing performance.

Ideal for racing dinghies, cruising sailboats, and larger yachts, the clinometer features a precision 6° scale for measuring small changes in heel and a 45° scale for monitoring greater angles. Its compact design allows for installation inside or outside the cabin.

Key Features

• Dual Measurement Scales: Measures heel angles up to 6° and 45°.
• Easy-to-Read Graduations: 1° increments up to 6° and 5° increments up to 45°.
• Sailing Performance: Helps monitor heel angle for better sail trim and boat balance.
• Versatile Installation: Suitable for interior or exterior mounting.
• Compact Design: Fits conveniently on bulkheads and other suitable mounting surfaces.
• Four-Screw Mounting: Provides secure installation (screws not included).

Specifications

• Brand: Plastimo
• Manufacturer Part Number: 51494
• Product Type: Twin Scale Clinometer / Heelmeter
• Measurement Range: 6° and 45°
• Graduations: 1° up to 6°; 5° up to 45°
• Dimensions: 4.33" W × 3.23" H (110 × 82 mm)
• Mounting: 4 screws (not included)
• Screw Diameter: 0.16" (4 mm)
• Mounting Hole Spacing: 3.54" (90 mm)
• Installation: Interior or exterior
